W36x150 – W Shapes - American wide flange beams

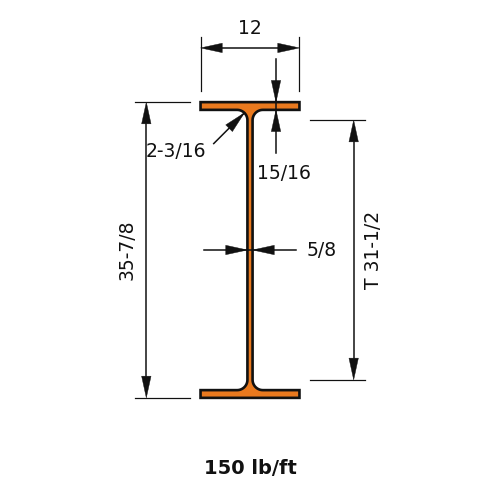

W36x150 is 35.9 in (912 mm) deep with a 12 in (305 mm) wide flange, and weighs 150 lb/ft (223.2 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)150.0
Depth of Section (in)35.9
Width of Section (in)12.0
Web Thickness (in)0.625
Flange Thickness (in)0.94
Kdet Dimension (in)2.1875
T Dimension (in)31.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)9040
Zx (in³)581
Sx (in³)504
rx (in)14.3
Iy (in⁴)270
Zy (in³)70.9
Sy (in³)45.1
ry (in)2.47
J (in⁴)10.1
Cw (in⁶)82200
rts (in)3.06
ho (in)35
