W36x652 – W Shapes - American wide flange beams

W36x652 is 41.1 in (1044 mm) deep with a 17.6 in (447 mm) wide flange, and weighs 652 lb/ft (970.3 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

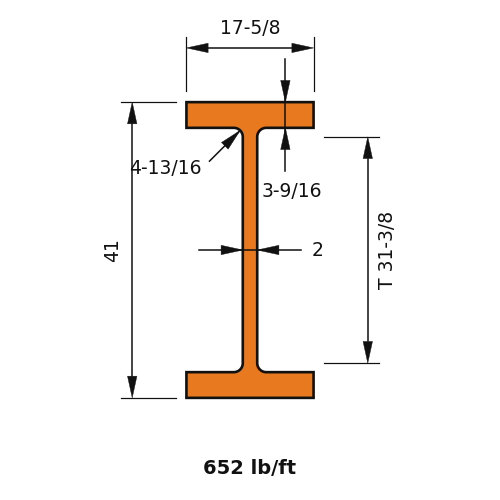

Dimensions

PropertyValue
Nominal Weight (lb/ft)652.0
Depth of Section (in)41.1
Width of Section (in)17.6
Web Thickness (in)1.97
Flange Thickness (in)3.54
Kdet Dimension (in)4.8125
T Dimension (in)31.375
