W36x723 – W Shapes - American wide flange beams

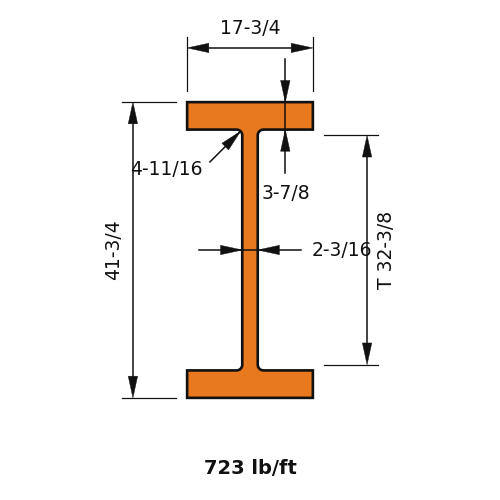

W36x723 is 41.8 in (1062 mm) deep with a 17.8 in (452 mm) wide flange, and weighs 723 lb/ft (1075.9 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)723.0
Depth of Section (in)41.8
Width of Section (in)17.8
Web Thickness (in)2.17
Flange Thickness (in)3.9
Kdet Dimension (in)4.6875
T Dimension (in)32.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)57300
Zx (in³)3270
Sx (in³)2740
rx (in)16.4
Iy (in⁴)3700
Zy (in³)658
Sy (in³)416
ry (in)4.17
J (in⁴)785
Cw (in⁶)1330000
rts (in)5.06
ho (in)37.9
