W44x230 – W Shapes - American wide flange beams

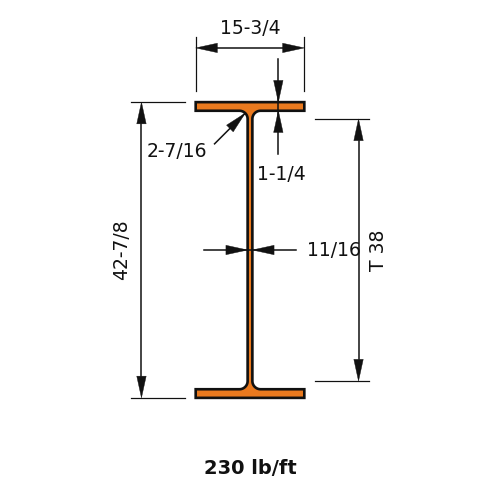

W44x230 is 42.9 in (1090 mm) deep with a 15.8 in (401 mm) wide flange, and weighs 230 lb/ft (342.3 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)230.0
Depth of Section (in)42.9
Width of Section (in)15.8
Web Thickness (in)0.71
Flange Thickness (in)1.22
Kdet Dimension (in)2.4375
T Dimension (in)38.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)20800
Zx (in³)1100
Sx (in³)971
rx (in)17.5
Iy (in⁴)796
Zy (in³)157
Sy (in³)101
ry (in)3.43
J (in⁴)24.9
Cw (in⁶)346000
rts (in)4.13
ho (in)41.7

Full sortable table: Section properties table for this family
