W40x655 – W Shapes - American wide flange beams

W40x655 is 43.6 in (1107 mm) deep with a 16.9 in (429 mm) wide flange, and weighs 655 lb/ft (974.7 kg/m).

Wide-flange (W) shapes are the most widely used structural steel section in North American construction — an I-shaped profile with flanges that are parallel-faced and constant in thickness, connected by a web running the full depth of the section. That shape puts the bulk of the material as far from the neutral axis as possible, giving W shapes an excellent strength-to-weight ratio for resisting bending. They're specified as beams, columns, and everything in between, across virtually every building type — from single-storey warehouses to high-rise frames — and in bridges, platforms, and heavy equipment supports. The wide range of depths and weights available in the AISC series means there's a W shape suited to almost any span or load, from light floor framing through to the heaviest deep columns carrying a high-rise's gravity loads.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

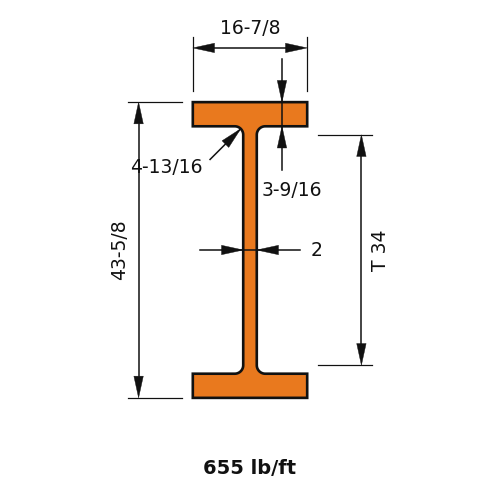

Dimensions

PropertyValue
Nominal Weight (lb/ft)655.0
Depth of Section (in)43.6
Width of Section (in)16.9
Web Thickness (in)1.97
Flange Thickness (in)3.54
Kdet Dimension (in)4.8125
T Dimension (in)34.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)56500
Zx (in³)3080
Sx (in³)2590
rx (in)17.1
Iy (in⁴)2870
Zy (in³)542
Sy (in³)340
ry (in)3.86
J (in⁴)589
Cw (in⁶)1150000
rts (in)4.71
ho (in)40.1

Full sortable table: Section properties table for this family
