ST12x53 – ST Shapes

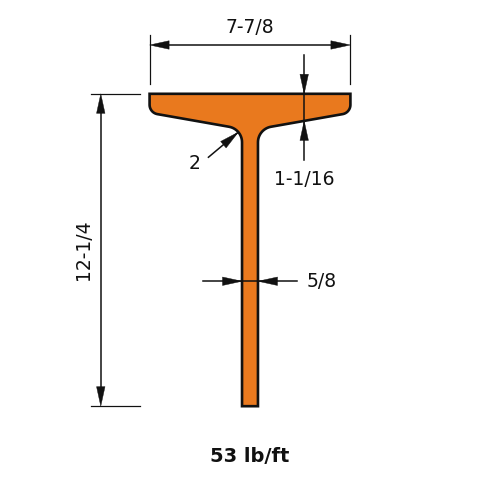

ST12x53 is a tee 12.3 in (312 mm) deep with a 7.87 in (200 mm) flange, weighing 53 lb/ft (78.9 kg/m).
ST shapes are structural tees split from S shapes, inheriting the tapered flange proportions of their S-shape parent. They're specified for the same general tee applications as WT and MT shapes — truss and joist chords, built-up sections — in situations where the specific proportions of a split S shape suit the design, including retrofit or matching work on structures originally built with S-shape members.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 53.0 |
| Depth of Section (in) | 12.3 |
| Width of Section (in) | 7.87 |
| Web Thickness (in) | 0.62 |
| Flange Thickness (in) | 1.09 |
| Kdet Dimension (in) | 2.0 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 216 |
| Zx (in³) | 43.3 |
| Sx (in³) | 24.1 |
| rx (in) | 3.72 |
| Iy (in⁴) | 38.4 |
| Zy (in³) | 16.7 |
| Sy (in³) | 9.76 |
| ry (in) | 1.57 |
| J (in⁴) | 5.05 |
| Cw (in⁶) | 15 |
| ro (in) | 4.88 |
| H (-) | 0.686 |
Full sortable table: Section properties table for this family
