ST12x60.5 – ST Shapes

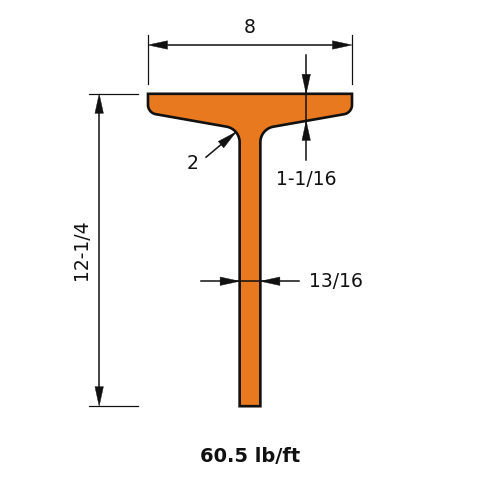

ST12x60.5 is a tee 12.3 in (312 mm) deep with an 8.05 in (204 mm) flange, weighing 60.5 lb/ft (90.0 kg/m).
ST shapes are structural tees split from S shapes, inheriting the tapered flange proportions of their S-shape parent. They're specified for the same general tee applications as WT and MT shapes — truss and joist chords, built-up sections — in situations where the specific proportions of a split S shape suit the design, including retrofit or matching work on structures originally built with S-shape members.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 60.5 |
| Depth of Section (in) | 12.3 |
| Width of Section (in) | 8.05 |
| Web Thickness (in) | 0.8 |
| Flange Thickness (in) | 1.09 |
| Kdet Dimension (in) | 2.0 |
