M Shapes - M4x4.08
M shapes are doubly-symmetric, I-shaped sections that fall outside the standard W and S weight/depth series — typically lighter and often smaller than the lightest available W shape at a comparable depth. They're specified for light-frame construction, secondary framing members, and miscellaneous structural applications where a full W-shape section would be heavier than the load actually requires. Because the M series fills gaps the W and S series don't cover, it's a useful option whenever a project needs an economical, lightweight I-shaped member — mezzanine framing, light equipment platforms, and similar low-load structural work.
Nearby Sections

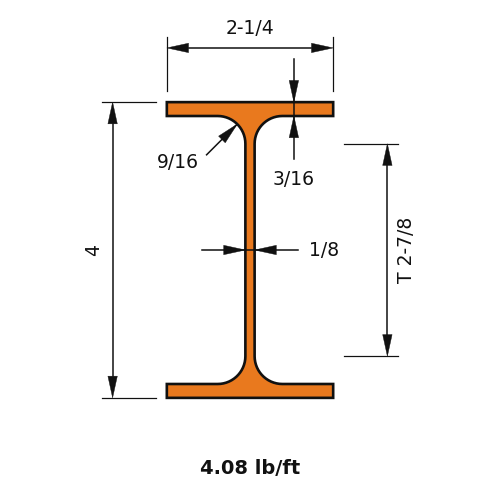

Dimensions
| Property | Value |
|---|---|
| Nominal Weight | 4.08 |
| Depth of Section | 4.0 |
| Width of Section | 2.25 |
| Web Thickness | 0.115 |
| Flange Thickness | 0.17 |
| Kdet Dimension | 0.5625 |
| T Dimension | 2.875 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix | 3.53 |
| Zx | 2 |
| Sx | 1.77 |
| rx | 1.67 |
| Iy | 0.325 |
| Zy | 0.453 |
| Sy | 0.289 |
| ry | 0.506 |
| J | 0.0147 |
| Cw | 1.19 |
| rts | 0.593 |
| ho | 3.83 |
