M Shapes - M4x6
M shapes are doubly-symmetric, I-shaped sections that fall outside the standard W and S weight/depth series — typically lighter and often smaller than the lightest available W shape at a comparable depth. They're specified for light-frame construction, secondary framing members, and miscellaneous structural applications where a full W-shape section would be heavier than the load actually requires. Because the M series fills gaps the W and S series don't cover, it's a useful option whenever a project needs an economical, lightweight I-shaped member — mezzanine framing, light equipment platforms, and similar low-load structural work.
Nearby Sections
Dimensions

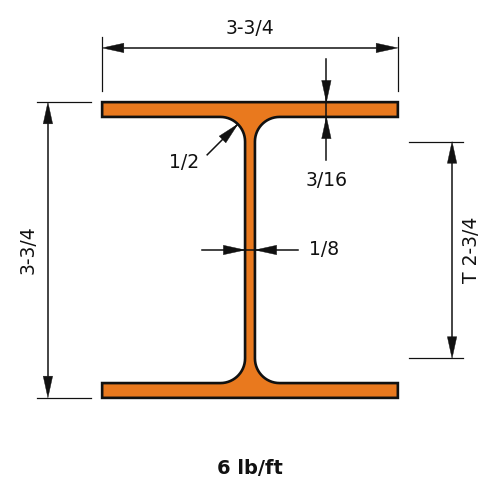

| Property | Value |
|---|---|
| Nominal Weight | 6.0 |
| Depth of Section | 3.8 |
| Width of Section | 3.8 |
| Web Thickness | 0.13 |
| Flange Thickness | 0.16 |
| Kdet Dimension | 0.5 |
| T Dimension | 2.75 |
