M Shapes - M8x6.5
M shapes are doubly-symmetric, I-shaped sections that fall outside the standard W and S weight/depth series — typically lighter and often smaller than the lightest available W shape at a comparable depth. They're specified for light-frame construction, secondary framing members, and miscellaneous structural applications where a full W-shape section would be heavier than the load actually requires. Because the M series fills gaps the W and S series don't cover, it's a useful option whenever a project needs an economical, lightweight I-shaped member — mezzanine framing, light equipment platforms, and similar low-load structural work.
Nearby Sections

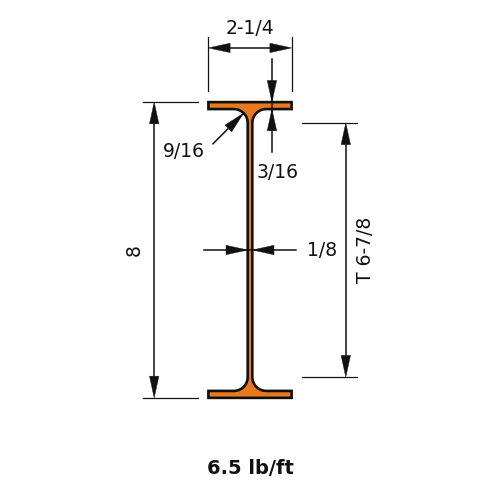

Dimensions
| Property | Value |
|---|---|
| Nominal Weight | 6.5 |
| Depth of Section | 8.0 |
| Width of Section | 2.28 |
| Web Thickness | 0.135 |
| Flange Thickness | 0.189 |
| Kdet Dimension | 0.5625 |
| T Dimension | 6.875 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix | 18.5 |
| Zx | 5.43 |
| Sx | 4.63 |
| rx | 3.11 |
| Iy | 0.376 |
| Zy | 0.529 |
| Sy | 0.329 |
| ry | 0.443 |
| J | 0.0184 |
| Cw | 5.73 |
| rts | 0.563 |
| ho | 7.81 |
