M Shapes - M10x7.5
M shapes are doubly-symmetric, I-shaped sections that fall outside the standard W and S weight/depth series — typically lighter and often smaller than the lightest available W shape at a comparable depth. They're specified for light-frame construction, secondary framing members, and miscellaneous structural applications where a full W-shape section would be heavier than the load actually requires. Because the M series fills gaps the W and S series don't cover, it's a useful option whenever a project needs an economical, lightweight I-shaped member — mezzanine framing, light equipment platforms, and similar low-load structural work.
Nearby Sections

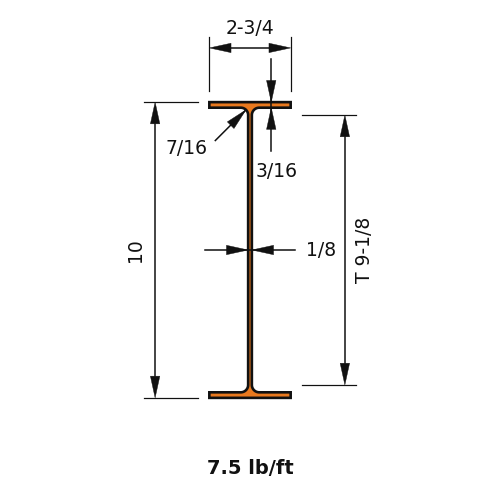

Dimensions
| Property | Value |
|---|---|
| Nominal Weight | 7.5 |
| Depth of Section | 9.99 |
| Width of Section | 2.69 |
| Web Thickness | 0.13 |
| Flange Thickness | 0.173 |
| Kdet Dimension | 0.4375 |
| T Dimension | 9.125 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix | 33 |
| Zx | 7.77 |
| Sx | 6.6 |
| rx | 3.85 |
| Iy | 0.562 |
| Zy | 0.67 |
| Sy | 0.418 |
| ry | 0.503 |
| J | 0.0187 |
| Cw | 13.5 |
| rts | 0.646 |
| ho | 9.82 |
Full sortable table: Section properties table for this family
