L Shapes - Equal Leg Angles - L3.5x3.5x.375

Equal leg angles are one of the simplest and most versatile structural sections, with two legs of the same size meeting at a right angle. Their simplicity is their strength: angles are inexpensive, easy to cut, drill, bolt and weld, and useful almost anywhere a structure needs bracing, a connection element or a lightweight framing member. Common applications include diagonal bracing, truss web members, framing clips and connection angles, ladder and frame components, and general-purpose fabrication work where a full I-shaped or channel section would be unnecessary.

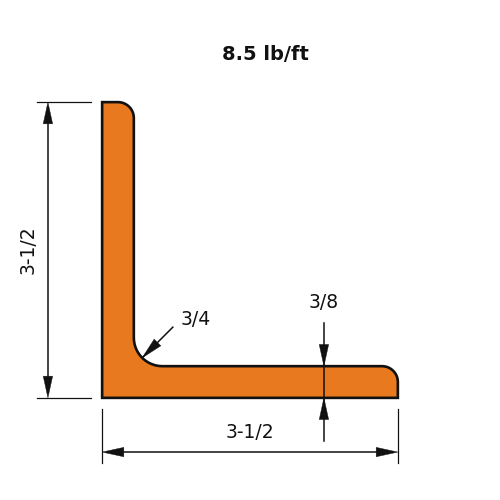

Dimensions

PropertyValue
Nominal Weight8.5
Leg Size3.5
Leg Size3.5
Nominal Thickness0.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix2.86
Zx2.06
Sx1.15
rx1.07
Iy2.86
Zy2.06
Sy1.15
ry1.07
Iz1.17
rz0.683
Sz0.83
J0.123
Cw0.106
ro1.9
H0.63

Full sortable table: Section properties table for this family
