L3-1/2x3-1/2x7/16 (L3.5x3.5x.4375) – L Shapes - Equal Leg Angles

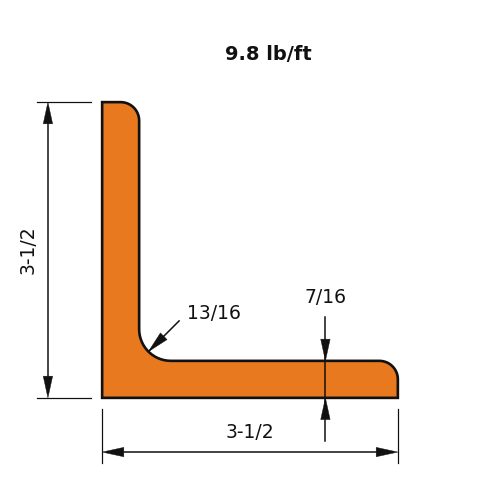

L3-1/2x3-1/2x7/16 is an equal-leg angle with 3.5 in (89 mm) legs, 7/16 in (11 mm) thick, weighing 9.8 lb/ft (14.6 kg/m).
Equal leg angles are one of the simplest and most versatile structural sections, with two legs of the same size meeting at a right angle. Their simplicity is their strength: angles are inexpensive, easy to cut, drill, bolt and weld, and useful almost anywhere a structure needs bracing, a connection element or a lightweight framing member. Common applications include diagonal bracing, truss web members, framing clips and connection angles, ladder and frame components, and general-purpose fabrication work where a full I-shaped or channel section would be unnecessary.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 9.8 |
| Leg Size (in) | 3.5 |
| Leg Size (in) | 3.5 |
| Nominal Thickness (in) | 0.438 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 3.25 |
| Zx (in³) | 2.36 |
| Sx (in³) | 1.32 |
| rx (in) | 1.06 |
| Iy (in⁴) | 3.25 |
| Zy (in³) | 2.36 |
| Sy (in³) | 1.32 |
| ry (in) | 1.06 |
| Iz (in⁴) | 1.33 |
| rz (in) | 0.681 |
| Sz (in³) | 0.911 |
| J (in⁴) | 0.192 |
| Cw (in⁶) | 0.164 |
| ro (in) | 1.89 |
| H (-) | 0.63 |
Full sortable table: Section properties table for this family
