L5x3-1/2x5/8 (L5x3.5x.625) – L Shapes - Unequal Leg Angles

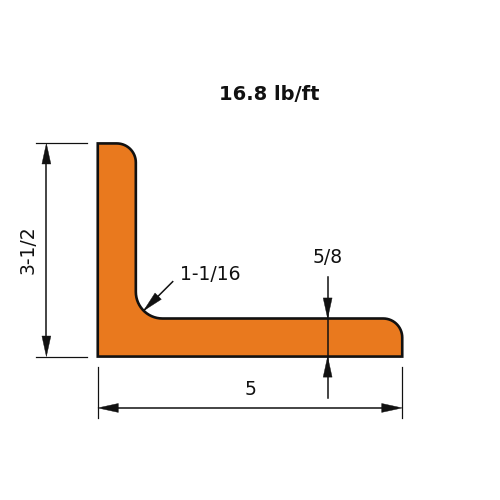

L5x3-1/2x5/8 is an unequal-leg angle with 5 in (127 mm) x 3.5 in (89 mm) legs, 5/8 in (16 mm) thick, weighing 16.8 lb/ft (25.0 kg/m).
Unequal leg angles have two legs of different sizes meeting at a right angle, which lets you place the longer leg where the span or connection needs it. They share the practical advantages of all angles: inexpensive, easy to cut, drill, bolt and weld, and useful wherever a structure needs bracing, a connection element or a lightweight framing member. The unequal geometry suits lintels over doors and windows, shelf angles, unequal-leg bracing, truss members and general fabrication work where one direction carries more load than the other.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 16.8 |
| Leg Size (in) | 3.5 |
| Leg Size (in) | 5.0 |
| Nominal Thickness (in) | 0.625 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 12 |
| Zx (in³) | 6.5 |
| Sx (in³) | 3.63 |
| rx (in) | 1.56 |
| Iy (in⁴) | 4.8 |
| Zy (in³) | 3.43 |
| Sy (in³) | 1.88 |
| ry (in) | 0.987 |
| Iz (in⁴) | 2.74 |
| rz (in) | 0.746 |
| Sz (in³) | 1.59 |
| J (in⁴) | 0.651 |
| Cw (in⁶) | 0.918 |
| ro (in) | 2.39 |
Full sortable table: Section properties table for this family
