L5x3-1/2x3/4 (L5x3.5x.75) – L Shapes - Unequal Leg Angles

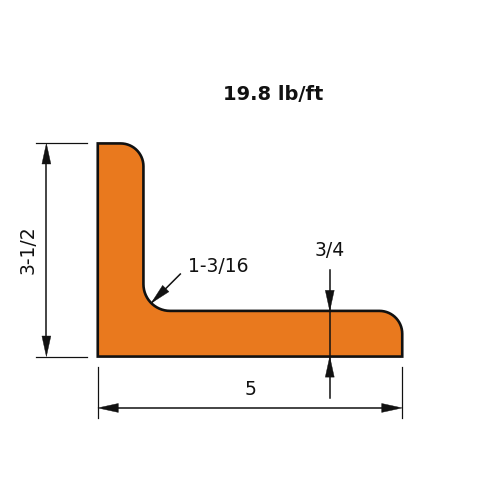

L5x3-1/2x3/4 is an unequal-leg angle with 5 in (127 mm) x 3.5 in (89 mm) legs, 3/4 in (19 mm) thick, weighing 19.8 lb/ft (29.5 kg/m).
Unequal leg angles have two legs of different sizes meeting at a right angle, which lets you place the longer leg where the span or connection needs it. They share the practical advantages of all angles: inexpensive, easy to cut, drill, bolt and weld, and useful wherever a structure needs bracing, a connection element or a lightweight framing member. The unequal geometry suits lintels over doors and windows, shelf angles, unequal-leg bracing, truss members and general fabrication work where one direction carries more load than the other.
