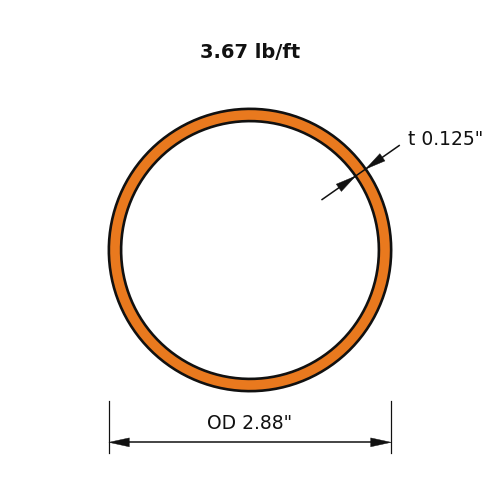

HSS Shapes - Round - HSS2.875X.125
Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.
Dimensions
| Property | Value |
|---|---|
| Nominal Weight | 3.67 |
| Outside Diameter | 2.875 |
| Nominal Thickness | 0.125 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix | 0.958 |
| Zx | 0.884 |
| Sx | 0.667 |
| rx | 0.976 |
| Iy | 0.958 |
| Zy | 0.884 |
| Sy | 0.667 |
| ry | 0.976 |
| J | 1.92 |
| C | 1.33 |
Full sortable table: Section properties table for this family
