HSS Shapes - Round - HSS2.875X.188

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

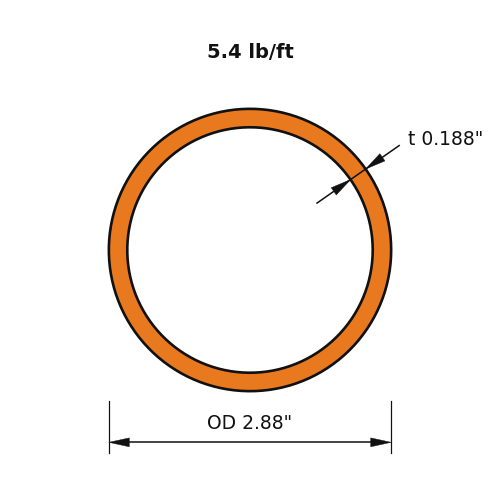

Dimensions

PropertyValue
Nominal Weight5.4
Outside Diameter2.875
Nominal Thickness0.188

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix1.35
Zx1.27
Sx0.941
rx0.957
Iy1.35
Zy1.27
Sy0.941
ry0.957
J2.7
C1.88

Full sortable table: Section properties table for this family
