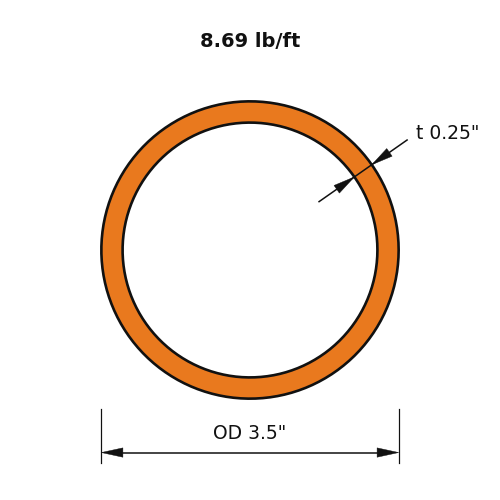

HSS Shapes - Round - HSS3.500X.250

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

Dimensions

PropertyValue
Nominal Weight8.69
Outside Diameter3.5
Nominal Thickness0.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix3.21
Zx2.49
Sx1.83
rx1.16
Iy3.21
Zy2.49
Sy1.83
ry1.16
J6.41
C3.66

Full sortable table: Section properties table for this family
