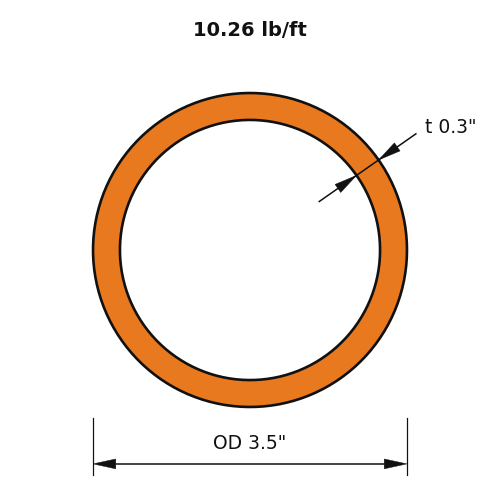

HSS Shapes - Round - HSS3.500X.300

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

Dimensions

PropertyValue
Nominal Weight10.26
Outside Diameter3.5
Nominal Thickness0.3

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix3.69
Zx2.9
Sx2.11
rx1.14
Iy3.69
Zy2.9
Sy2.11
ry1.14
J7.38
C4.22

Full sortable table: Section properties table for this family
