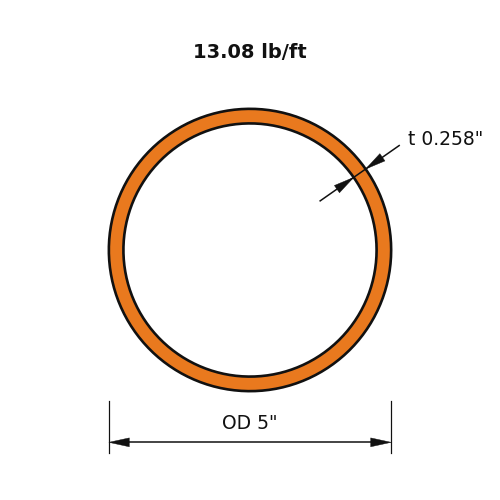

HSS Shapes - Round - HSS5X.258

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

Dimensions

PropertyValue
Nominal Weight13.08
Outside Diameter5.0
Nominal Thickness0.258

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix10.2
Zx5.44
Sx4.08
rx1.69
Iy10.2
Zy5.44
Sy4.08
ry1.69
J20.4
C8.15

Full sortable table: Section properties table for this family
