HSS Shapes - Round - HSS5X.312

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

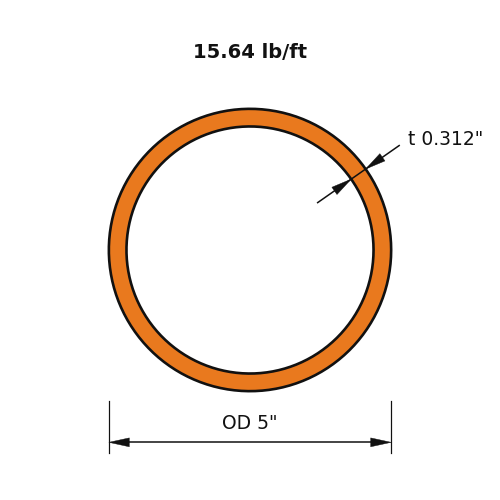

Dimensions

PropertyValue
Nominal Weight15.64
Outside Diameter5.0
Nominal Thickness0.312

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix12
Zx6.46
Sx4.79
rx1.67
Iy12
Zy6.46
Sy4.79
ry1.67
J24
C9.58

Full sortable table: Section properties table for this family
