HSS2x2x1/4 (HSS2x2x.25) – HSS Shapes - Square

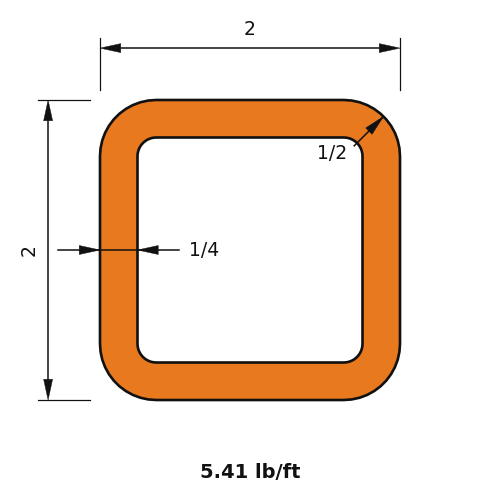

HSS2x2x1/4 is a 2 in (51 mm) square hollow section with a 1/4 in (6 mm) nominal wall, weighing 5.41 lb/ft (8.1 kg/m).

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)5.41
Depth of Section (in)2.0
Depth of Flat Wall (in)1.3
Width of Section (in)2.0
Width of Flat Wall (in)1.3
Nominal Thickness (in)0.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)0.747
Zx (in³)0.964
Sx (in³)0.747
rx (in)0.704
Iy (in⁴)0.747
Zy (in³)0.964
Sy (in³)0.747
ry (in)0.704
J (in⁴)1.31
C (in³)1.41

Full sortable table: Section properties table for this family
