HSS Shapes - Square - HSS2.25x2.25x.125
Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

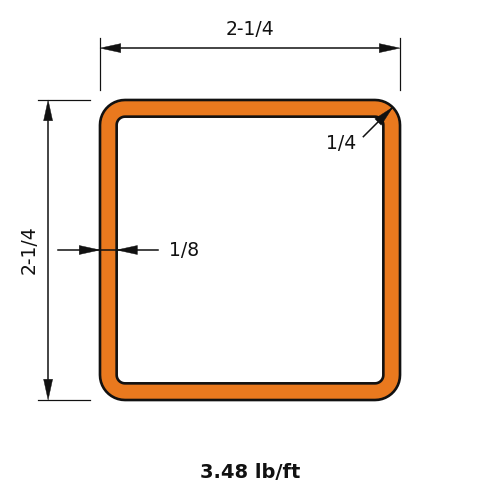

Dimensions
| Property | Value |
|---|---|
| Nominal Weight | 3.48 |
| Depth of Section | 2.25 |
| Depth of Flat Wall | 1.9 |
| Width of Section | 2.25 |
| Width of Flat Wall | 1.9 |
| Nominal Thickness | 0.125 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix | 0.712 |
| Zx | 0.755 |
| Sx | 0.633 |
| rx | 0.863 |
| Iy | 0.712 |
| Zy | 0.755 |
| Sy | 0.633 |
| ry | 0.863 |
| J | 1.15 |
| C | 1.05 |
Full sortable table: Section properties table for this family
