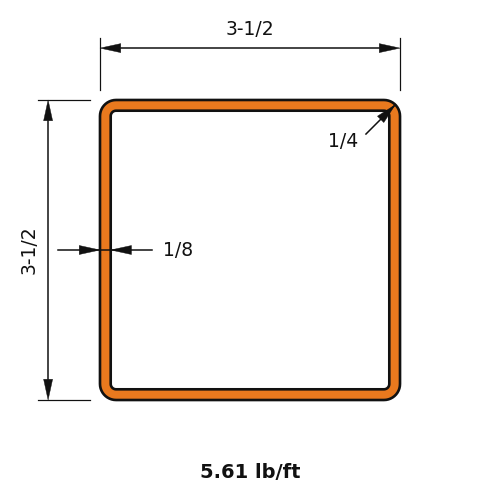

HSS Shapes - Square - HSS3.5x3.5x.125

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight5.61
Depth of Section3.5
Depth of Flat Wall3.15
Width of Section3.5
Width of Flat Wall3.15
Nominal Thickness0.125

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix2.9
Zx1.93
Sx1.66
rx1.37
Iy2.9
Zy1.93
Sy1.66
ry1.37
J4.58
C2.65

Full sortable table: Section properties table for this family
