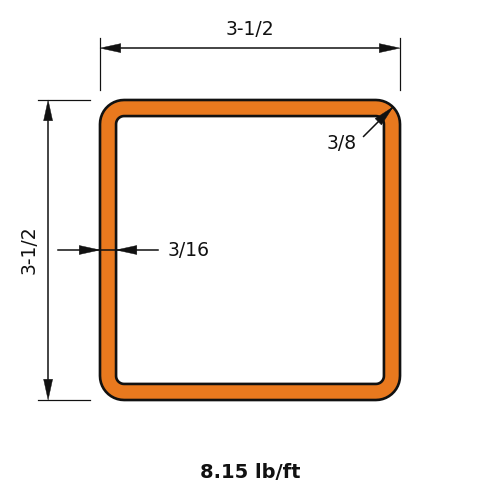

HSS Shapes - Square - HSS3.5x3.5x.1875

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight8.15
Depth of Section3.5
Depth of Flat Wall2.98
Width of Section3.5
Width of Flat Wall2.98
Nominal Thickness0.1875

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix4.05
Zx2.76
Sx2.31
rx1.35
Iy4.05
Zy2.76
Sy2.31
ry1.35
J6.56
C3.83

Full sortable table: Section properties table for this family
