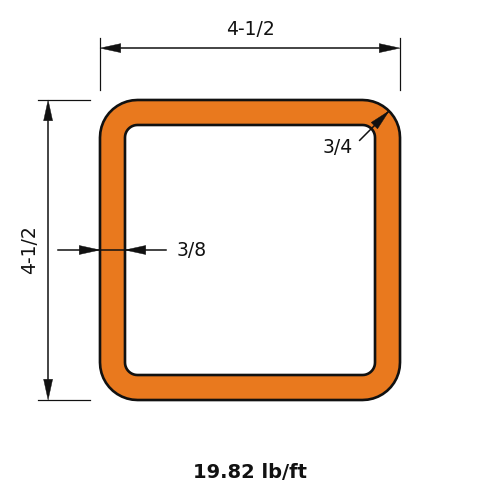

HSS Shapes - Square - HSS4.5x4.5x.375

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight19.82
Depth of Section4.5
Depth of Flat Wall3.45
Width of Section4.5
Width of Flat Wall3.45
Nominal Thickness0.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix15.3
Zx8.36
Sx6.79
rx1.67
Iy15.3
Zy8.36
Sy6.79
ry1.67
J25.7
C11.9

Full sortable table: Section properties table for this family
