HSS Shapes - Square - HSS4.5x4.5x.5

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

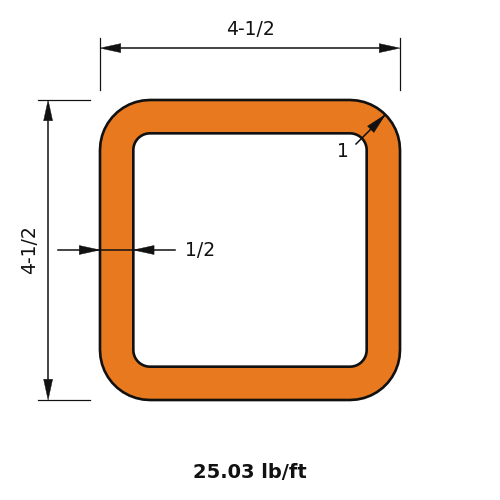

Dimensions

PropertyValue
Nominal Weight25.03
Depth of Section4.5
Depth of Flat Wall3.1
Width of Section4.5
Width of Flat Wall3.1
Nominal Thickness0.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix18.1
Zx10.2
Sx8.03
rx1.61
Iy18.1
Zy10.2
Sy8.03
ry1.61
J31.3
C14.8

Full sortable table: Section properties table for this family
