HSS Shapes - Rectangular - HSS24x18x.625

Rectangular HSS (Hollow Structural Sections) are closed, tube-shaped sections formed into a rectangular profile. Their closed shape gives them excellent torsional stiffness, while the unequal depth and width let you put the greater stiffness where the loading needs it. That makes rectangular HSS a common choice for beams and girts, canopy and entrance framing, architecturally exposed steelwork, and any framing where a clean closed profile and a strong axis are both required.

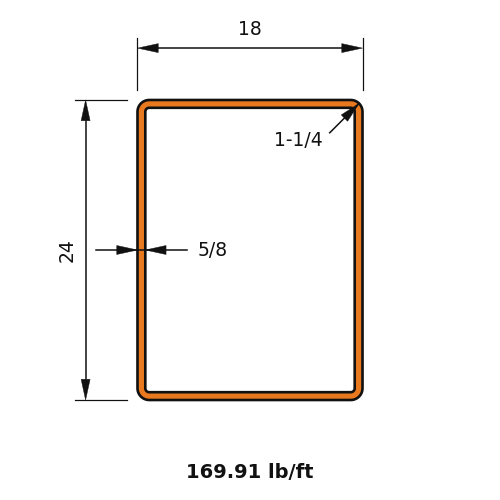

Dimensions

PropertyValue
Nominal Weight169.91
Depth of Section24.0
Depth of Flat Wall22.3
Width of Section18.0
Width of Flat Wall16.3
Nominal Thickness0.625

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix3900
Zx386
Sx325
rx9.15
Iy2510
Zy318
Sy279
ry7.34
J4810
C473

Full sortable table: Section properties table for this family
