HSS Shapes - Rectangular - HSS24x18x.75

Rectangular HSS (Hollow Structural Sections) are closed, tube-shaped sections formed into a rectangular profile. Their closed shape gives them excellent torsional stiffness, while the unequal depth and width let you put the greater stiffness where the loading needs it. That makes rectangular HSS a common choice for beams and girts, canopy and entrance framing, architecturally exposed steelwork, and any framing where a clean closed profile and a strong axis are both required.

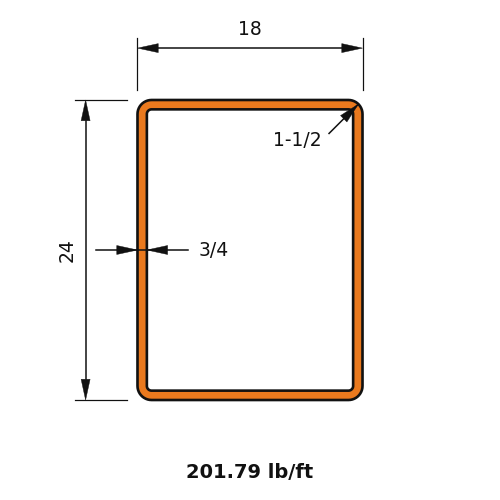

Dimensions

PropertyValue
Nominal Weight201.79
Depth of Section24.0
Depth of Flat Wall21.9
Width of Section18.0
Width of Flat Wall15.9
Nominal Thickness0.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix4580
Zx456
Sx382
rx9.09
Iy2940
Zy375
Sy327
ry7.29
J5690
C562

Full sortable table: Section properties table for this family
