HSS10x10x3/4 (HSS10x10x.75) – HSS Shapes - Square

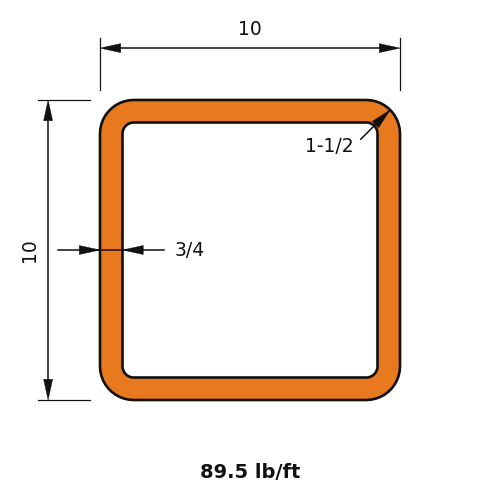

HSS10x10x3/4 is a 10 in (254 mm) square hollow section with a 3/4 in (19 mm) nominal wall, weighing 89.5 lb/ft (133.2 kg/m).

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)89.5
Depth of Section (in)10.0
Depth of Flat Wall (in)7.91
Width of Section (in)10.0
Width of Flat Wall (in)7.91
Nominal Thickness (in)0.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)347
Zx (in³)84.7
Sx (in³)69.4
rx (in)3.75
Iy (in⁴)347
Zy (in³)84.7
Sy (in³)69.4
ry (in)3.75
J (in⁴)578
C (in³)119

Full sortable table: Section properties table for this family
