HSS Shapes - Square - HSS10x10x.625

Square HSS (Hollow Structural Sections) are closed, tube-shaped sections with equal depth and width. The closed profile gives excellent torsional stiffness and identical strength about both axes, a meaningful advantage over open shapes such as W or C sections. That symmetry makes square HSS a natural choice for columns, particularly where architecturally exposed structural steel is part of the design, and for posts, bracing and light framing where equal biaxial capacity and a clean profile matter more than bending capacity in one direction.

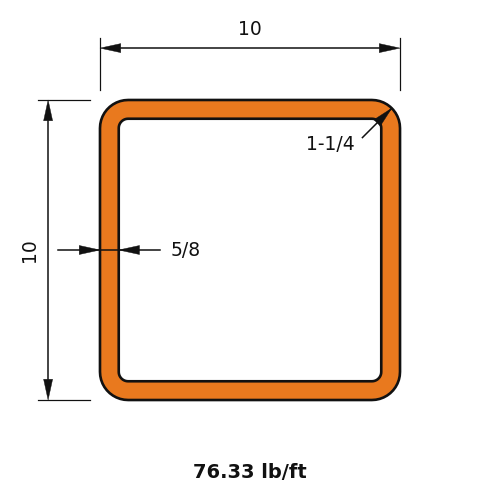

Dimensions

PropertyValue
Nominal Weight76.33
Depth of Section10.0
Depth of Flat Wall8.26
Width of Section10.0
Width of Flat Wall8.26
Nominal Thickness0.625

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix304
Zx73.2
Sx60.8
rx3.8
Iy304
Zy73.2
Sy60.8
ry3.8
J498
C102

Full sortable table: Section properties table for this family
