PIPE26XS – Pipe Shapes

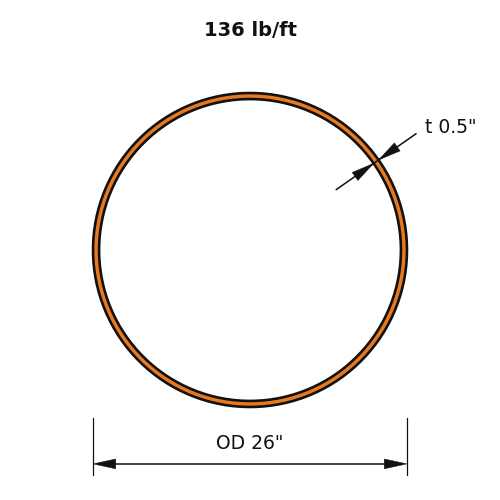

PIPE26XS is an extra strong pipe with an outside diameter of 26 in (660 mm), weighing 136 lb/ft (202.4 kg/m).

Pipe shapes are round hollow sections specified using the piping industry's own sizing convention — nominal pipe size and schedule (wall thickness) — rather than the outside-diameter-and-wall-thickness convention used for round HSS. Structurally they serve many of the same purposes as round HSS: columns, bollards, guardrail and handrail posts, and piling, particularly where a heavier wall thickness (schedule 80 and above) is wanted for extra corrosion allowance, impact resistance, or where a project's specification calls for pipe sizing specifically rather than HSS sizing.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)136.0
Outside Diameter (in)26.0
Inside Diameter (in)25.1
Nominal Thickness (in)0.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)2950
Zx (in³)294
Sx (in³)227
rx (in)9.03
Iy (in⁴)2950
Zy (in³)294
Sy (in³)227
ry (in)9.03
J (in⁴)5900

Full sortable table: Section properties table for this family
