PIPE24XS – Pipe Shapes

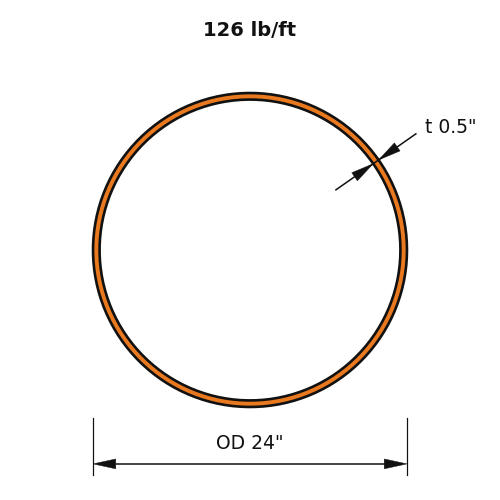

PIPE24XS is an extra strong pipe with an outside diameter of 24 in (610 mm), weighing 126 lb/ft (187.5 kg/m).

Pipe shapes are round hollow sections specified using the piping industry's own sizing convention — nominal pipe size and schedule (wall thickness) — rather than the outside-diameter-and-wall-thickness convention used for round HSS. Structurally they serve many of the same purposes as round HSS: columns, bollards, guardrail and handrail posts, and piling, particularly where a heavier wall thickness (schedule 80 and above) is wanted for extra corrosion allowance, impact resistance, or where a project's specification calls for pipe sizing specifically rather than HSS sizing.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)126.0
Outside Diameter (in)24.0
Inside Diameter (in)23.1
Nominal Thickness (in)0.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)2310
Zx (in³)250
Sx (in³)192
rx (in)8.33
Iy (in⁴)2310
Zy (in³)250
Sy (in³)192
ry (in)8.33
J (in⁴)4620

Full sortable table: Section properties table for this family
