PIPE20STD – Pipe Shapes

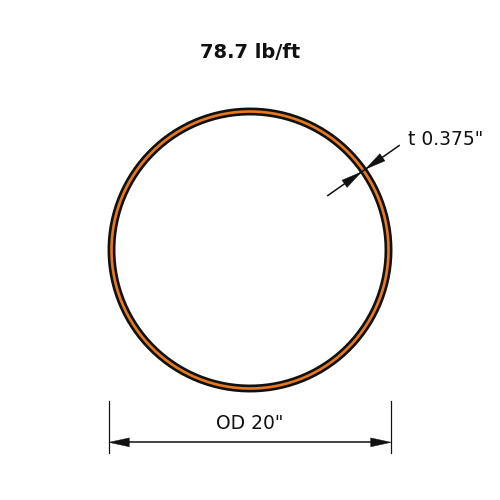

PIPE20STD is a standard weight pipe with an outside diameter of 20 in (508 mm), weighing 78.7 lb/ft (117.1 kg/m).

Pipe shapes are round hollow sections specified using the piping industry's own sizing convention — nominal pipe size and schedule (wall thickness) — rather than the outside-diameter-and-wall-thickness convention used for round HSS. Structurally they serve many of the same purposes as round HSS: columns, bollards, guardrail and handrail posts, and piling, particularly where a heavier wall thickness (schedule 80 and above) is wanted for extra corrosion allowance, impact resistance, or where a project's specification calls for pipe sizing specifically rather than HSS sizing.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)78.7
Outside Diameter (in)20.0
Inside Diameter (in)19.3
Nominal Thickness (in)0.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1040
Zx (in³)135
Sx (in³)104
rx (in)6.95
Iy (in⁴)1040
Zy (in³)135
Sy (in³)104
ry (in)6.95
J (in⁴)2090

Full sortable table: Section properties table for this family
