PIPE18STD – Pipe Shapes

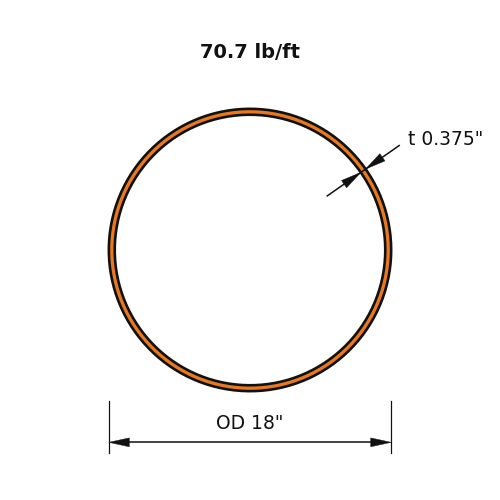

PIPE18STD is a standard weight pipe with an outside diameter of 18 in (457 mm), weighing 70.7 lb/ft (105.2 kg/m).

Pipe shapes are round hollow sections specified using the piping industry's own sizing convention — nominal pipe size and schedule (wall thickness) — rather than the outside-diameter-and-wall-thickness convention used for round HSS. Structurally they serve many of the same purposes as round HSS: columns, bollards, guardrail and handrail posts, and piling, particularly where a heavier wall thickness (schedule 80 and above) is wanted for extra corrosion allowance, impact resistance, or where a project's specification calls for pipe sizing specifically rather than HSS sizing.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)70.7
Outside Diameter (in)18.0
Inside Diameter (in)17.3
Nominal Thickness (in)0.375

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)756
Zx (in³)109
Sx (in³)84
rx (in)6.24
Iy (in⁴)756
Zy (in³)109
Sy (in³)84
ry (in)6.24
J (in⁴)1510
