PIPE16XS – Pipe Shapes

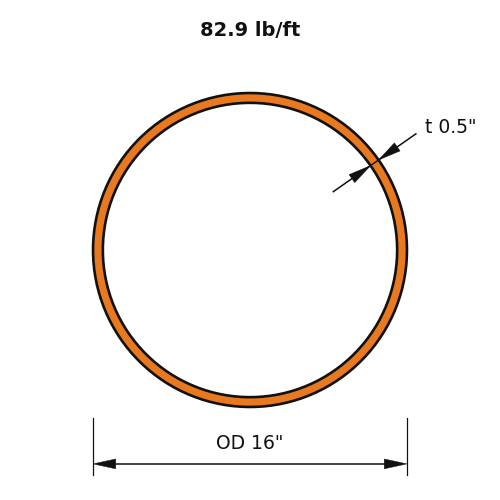

PIPE16XS is an extra strong pipe with an outside diameter of 16 in (406 mm), weighing 82.9 lb/ft (123.4 kg/m).

Pipe shapes are round hollow sections specified using the piping industry's own sizing convention — nominal pipe size and schedule (wall thickness) — rather than the outside-diameter-and-wall-thickness convention used for round HSS. Structurally they serve many of the same purposes as round HSS: columns, bollards, guardrail and handrail posts, and piling, particularly where a heavier wall thickness (schedule 80 and above) is wanted for extra corrosion allowance, impact resistance, or where a project's specification calls for pipe sizing specifically rather than HSS sizing.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)82.9
Outside Diameter (in)16.0
Inside Diameter (in)15.1
Nominal Thickness (in)0.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)665
Zx (in³)109
Sx (in³)83.1
rx (in)5.5
Iy (in⁴)665
Zy (in³)109
Sy (in³)83.1
ry (in)5.5
J (in⁴)1330
