PIPE14XS – Pipe Shapes

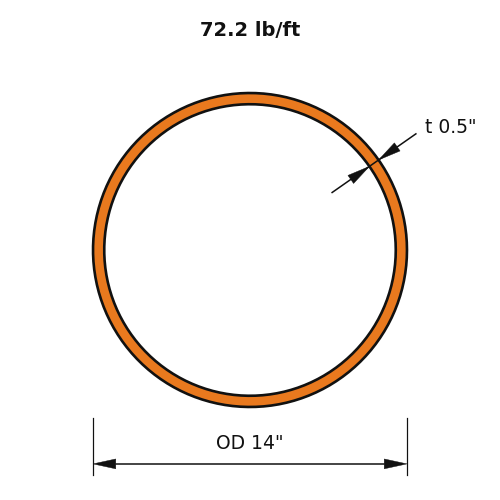

PIPE14XS is an extra strong pipe with an outside diameter of 14 in (356 mm), weighing 72.2 lb/ft (107.4 kg/m).
Pipe shapes are round hollow sections specified using the piping industry's own sizing convention — nominal pipe size and schedule (wall thickness) — rather than the outside-diameter-and-wall-thickness convention used for round HSS. Structurally they serve many of the same purposes as round HSS: columns, bollards, guardrail and handrail posts, and piling, particularly where a heavier wall thickness (schedule 80 and above) is wanted for extra corrosion allowance, impact resistance, or where a project's specification calls for pipe sizing specifically rather than HSS sizing.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 72.2 |
| Outside Diameter (in) | 14.0 |
| Inside Diameter (in) | 13.1 |
| Nominal Thickness (in) | 0.5 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 440 |
| Zx (in³) | 82.7 |
| Sx (in³) | 62.9 |
| rx (in) | 4.79 |
| Iy (in⁴) | 440 |
| Zy (in³) | 82.7 |
| Sy (in³) | 62.9 |
| ry (in) | 4.79 |
| J (in⁴) | 880 |
Full sortable table: Section properties table for this family
