PIPE12XXS – Pipe Shapes

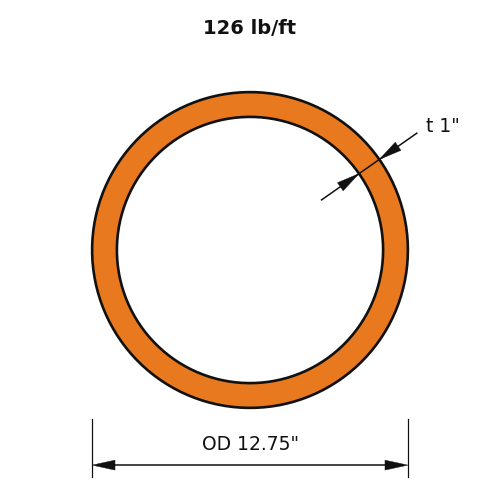

PIPE12XXS is a double-extra strong pipe with an outside diameter of 12.75 in (324 mm), weighing 126 lb/ft (187.5 kg/m).

Pipe shapes are round hollow sections specified using the piping industry's own sizing convention — nominal pipe size and schedule (wall thickness) — rather than the outside-diameter-and-wall-thickness convention used for round HSS. Structurally they serve many of the same purposes as round HSS: columns, bollards, guardrail and handrail posts, and piling, particularly where a heavier wall thickness (schedule 80 and above) is wanted for extra corrosion allowance, impact resistance, or where a project's specification calls for pipe sizing specifically rather than HSS sizing.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)126.0
Outside Diameter (in)12.75
Inside Diameter (in)10.9
Nominal Thickness (in)1.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)625
Zx (in³)134
Sx (in³)97.6
rx (in)4.2
Iy (in⁴)625
Zy (in³)134
Sy (in³)97.6
ry (in)4.2
J (in⁴)1250

Full sortable table: Section properties table for this family
