PIPE10XXS – Pipe Shapes

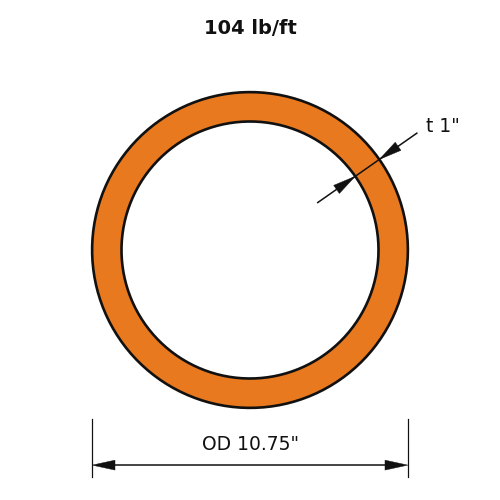

PIPE10XXS is a double-extra strong pipe with an outside diameter of 10.75 in (273 mm), weighing 104 lb/ft (154.8 kg/m).

Pipe shapes are round hollow sections specified using the piping industry's own sizing convention — nominal pipe size and schedule (wall thickness) — rather than the outside-diameter-and-wall-thickness convention used for round HSS. Structurally they serve many of the same purposes as round HSS: columns, bollards, guardrail and handrail posts, and piling, particularly where a heavier wall thickness (schedule 80 and above) is wanted for extra corrosion allowance, impact resistance, or where a project's specification calls for pipe sizing specifically rather than HSS sizing.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)104.0
Outside Diameter (in)10.75
Inside Diameter (in)8.94
Nominal Thickness (in)1.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)354
Zx (in³)90.9
Sx (in³)65.6
rx (in)3.51
Iy (in⁴)354
Zy (in³)90.9
Sy (in³)65.6
ry (in)3.51
J (in⁴)709

Full sortable table: Section properties table for this family
