L12x12x1-1/8 (L12x12x1.125) – L Shapes - Equal Leg Angles

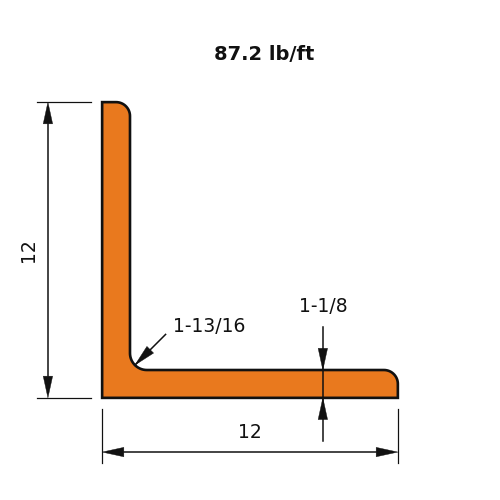

L12x12x1-1/8 is an equal-leg angle with 12 in (305 mm) legs, 1-1/8 in (29 mm) thick, weighing 87.2 lb/ft (129.8 kg/m).

Equal leg angles are one of the simplest and most versatile structural sections, with two legs of the same size meeting at a right angle. Their simplicity is their strength: angles are inexpensive, easy to cut, drill, bolt and weld, and useful almost anywhere a structure needs bracing, a connection element or a lightweight framing member. Common applications include diagonal bracing, truss web members, framing clips and connection angles, ladder and frame components, and general-purpose fabrication work where a full I-shaped or channel section would be unnecessary.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)87.2
Leg Size (in)12.0
Leg Size (in)12.0
Nominal Thickness (in)1.13

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)350
Zx (in³)73.7
Sx (in³)40.7
rx (in)3.68
Iy (in⁴)350
Zy (in³)73.7
Sy (in³)40.7
ry (in)3.68
Iz (in⁴)140
rz (in)2.33
Sz (in³)29
J (in⁴)11.1
Cw (in⁶)120
ro (in)6.58
H (-)0.626

Full sortable table: Section properties table for this family
