L12x12x1-1/4 (L12x12x1.25) – L Shapes - Equal Leg Angles

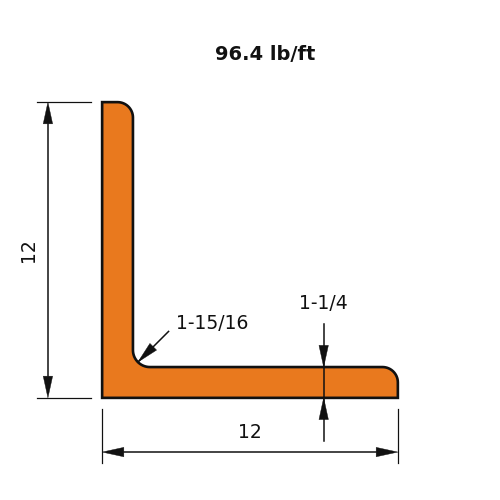

L12x12x1-1/4 is an equal-leg angle with 12 in (305 mm) legs, 1-1/4 in (32 mm) thick, weighing 96.4 lb/ft (143.5 kg/m).
Equal leg angles are one of the simplest and most versatile structural sections, with two legs of the same size meeting at a right angle. Their simplicity is their strength: angles are inexpensive, easy to cut, drill, bolt and weld, and useful almost anywhere a structure needs bracing, a connection element or a lightweight framing member. Common applications include diagonal bracing, truss web members, framing clips and connection angles, ladder and frame components, and general-purpose fabrication work where a full I-shaped or channel section would be unnecessary.
AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!
Nearby Sections
Dimensions
| Property | Value |
|---|---|
| Nominal Weight (lb/ft) | 96.4 |
| Leg Size (in) | 12.0 |
| Leg Size (in) | 12.0 |
| Nominal Thickness (in) | 1.25 |
Full sortable table: Dimensions table for this family
Section Properties
| Property | Value |
|---|---|
| Ix (in⁴) | 381 |
| Zx (in³) | 80.7 |
| Sx (in³) | 44.6 |
| rx (in) | 3.66 |
| Iy (in⁴) | 381 |
| Zy (in³) | 80.7 |
| Sy (in³) | 44.6 |
| ry (in) | 3.66 |
| Iz (in⁴) | 152 |
| rz (in) | 2.31 |
| Sz (in³) | 31.1 |
| J (in⁴) | 14.9 |
| Cw (in⁶) | 160 |
| ro (in) | 6.54 |
| H (-) | 0.627 |
Full sortable table: Section properties table for this family
