HSS26x5/8 (HSS26x.625) – HSS Shapes - Round

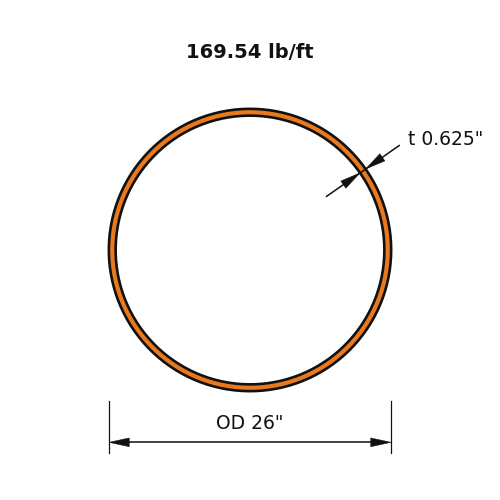

HSS26x5/8 is a 26 in (660 mm) diameter round hollow section with a 5/8 in (16 mm) nominal wall, weighing 169.54 lb/ft (252.3 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)169.54
Outside Diameter (in)26.0
Nominal Thickness (in)0.625

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)3750
Zx (in³)376
Sx (in³)289
rx (in)8.99
Iy (in⁴)3750
Zy (in³)376
Sy (in³)289
ry (in)8.99
J (in⁴)7500
C (in³)577

Full sortable table: Section properties table for this family
