HSS26x1/2 (HSS26x.500) – HSS Shapes - Round

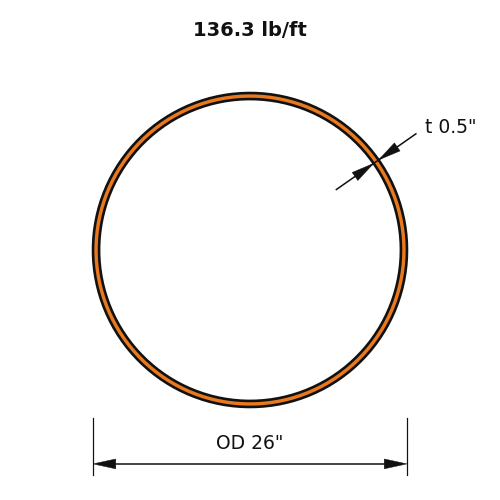

HSS26x1/2 is a 26 in (660 mm) diameter round hollow section with a 1/2 in (13 mm) nominal wall, weighing 136.3 lb/ft (202.8 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)136.3
Outside Diameter (in)26.0
Nominal Thickness (in)0.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)3040
Zx (in³)303
Sx (in³)234
rx (in)9.03
Iy (in⁴)3040
Zy (in³)303
Sy (in³)234
ry (in)9.03
J (in⁴)6080
C (in³)468

Full sortable table: Section properties table for this family
