HSS26x.313 – HSS Shapes - Round

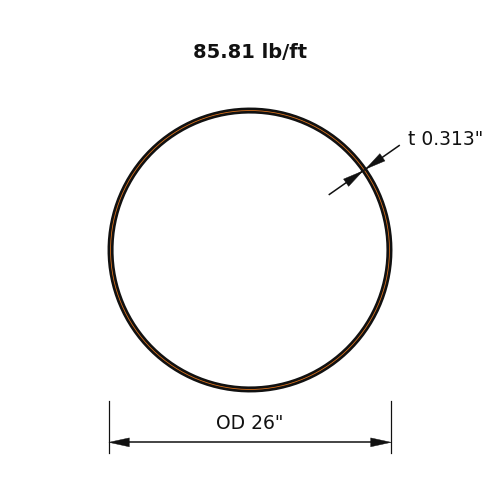

HSS26x.313 is a 26 in (660 mm) diameter round hollow section with a 0.313 in (8 mm) nominal wall, weighing 85.81 lb/ft (127.7 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)85.81
Outside Diameter (in)26.0
Nominal Thickness (in)0.313

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)1940
Zx (in³)192
Sx (in³)149
rx (in)9.09
Iy (in⁴)1940
Zy (in³)192
Sy (in³)149
ry (in)9.09
J (in⁴)3880
C (in³)298

Full sortable table: Section properties table for this family
