HSS24x1 (HSS24x1.000) – HSS Shapes - Round

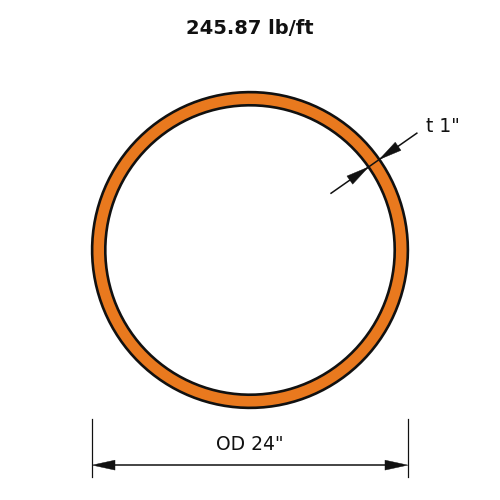

HSS24x1 is a 24 in (610 mm) diameter round hollow section with a 1 in (25 mm) nominal wall, weighing 245.87 lb/ft (365.9 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)245.87
Outside Diameter (in)24.0
Nominal Thickness (in)1.0

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)4490
Zx (in³)495
Sx (in³)374
rx (in)8.16
Iy (in⁴)4490
Zy (in³)495
Sy (in³)374
ry (in)8.16
J (in⁴)8980
C (in³)746

Full sortable table: Section properties table for this family
