HSS24x3/4 (HSS24x.750) – HSS Shapes - Round

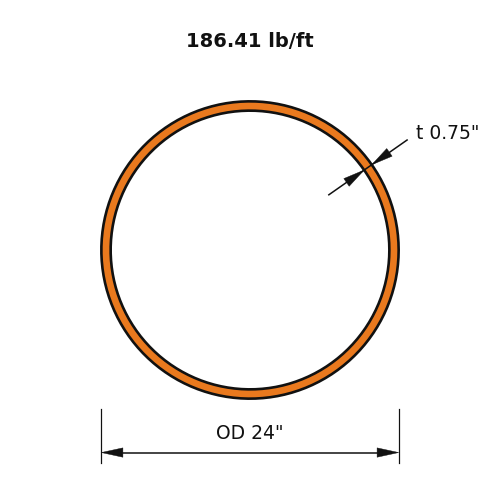

HSS24x3/4 is a 24 in (610 mm) diameter round hollow section with a 3/4 in (19 mm) nominal wall, weighing 186.41 lb/ft (277.4 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)186.41
Outside Diameter (in)24.0
Nominal Thickness (in)0.75

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)3470
Zx (in³)379
Sx (in³)289
rx (in)8.24
Iy (in⁴)3470
Zy (in³)379
Sy (in³)289
ry (in)8.24
J (in⁴)6940
C (in³)577

Full sortable table: Section properties table for this family
