HSS24x5/8 (HSS24x.625) – HSS Shapes - Round

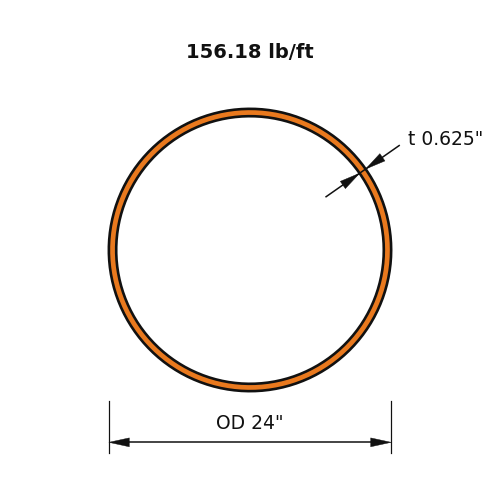

HSS24x5/8 is a 24 in (610 mm) diameter round hollow section with a 5/8 in (16 mm) nominal wall, weighing 156.18 lb/ft (232.4 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)156.18
Outside Diameter (in)24.0
Nominal Thickness (in)0.625

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)2930
Zx (in³)319
Sx (in³)244
rx (in)8.28
Iy (in⁴)2930
Zy (in³)319
Sy (in³)244
ry (in)8.28
J (in⁴)5870
C (in³)488

Full sortable table: Section properties table for this family
