HSS13-3/8x1/4 (HSS13.375x.250) – HSS Shapes - Round

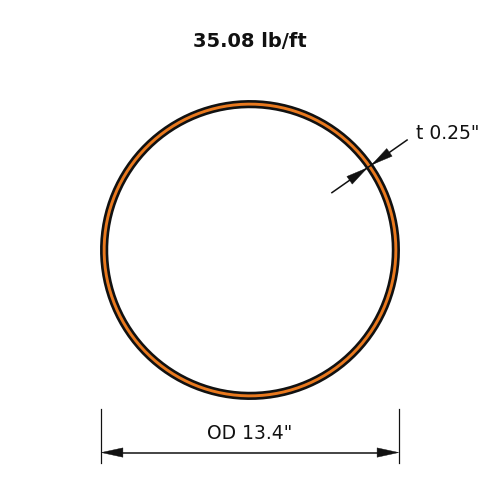

HSS13-3/8x1/4 is a 13.375 in (340 mm) diameter round hollow section with a 1/4 in (6 mm) nominal wall, weighing 35.08 lb/ft (52.2 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)35.08
Outside Diameter (in)13.375
Nominal Thickness (in)0.25

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)207
Zx (in³)40.2
Sx (in³)31
rx (in)4.65
Iy (in⁴)207
Zy (in³)40.2
Sy (in³)31
ry (in)4.65
J (in⁴)415
C (in³)62

Full sortable table: Section properties table for this family
