HSS13.375x.188 – HSS Shapes - Round

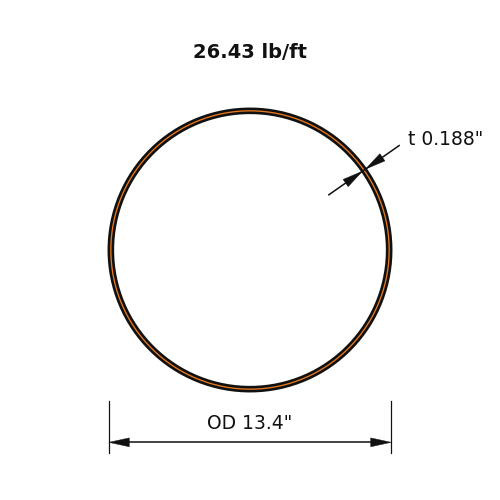

HSS13.375x.188 is a 13.375 in (340 mm) diameter round hollow section with a 0.188 in (5 mm) nominal wall, weighing 26.43 lb/ft (39.3 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)26.43
Outside Diameter (in)13.375
Nominal Thickness (in)0.188

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)158
Zx (in³)30.4
Sx (in³)23.6
rx (in)4.67
Iy (in⁴)158
Zy (in³)30.4
Sy (in³)23.6
ry (in)4.67
J (in⁴)315
C (in³)47.1

Full sortable table: Section properties table for this family
