HSS11-3/4x1/2 (HSS11.75x.500) – HSS Shapes - Round

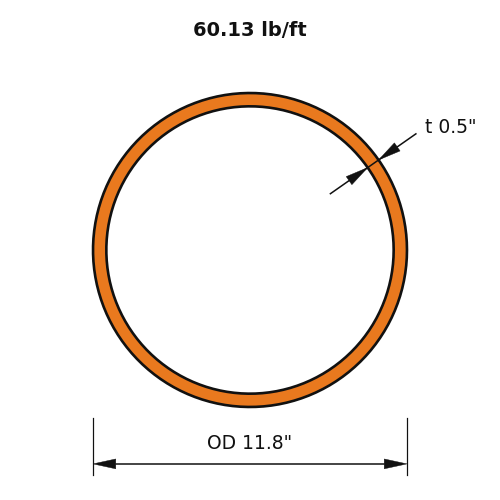

HSS11-3/4x1/2 is an 11.75 in (298 mm) diameter round hollow section with a 1/2 in (13 mm) nominal wall, weighing 60.13 lb/ft (89.5 kg/m).

Round HSS are closed, circular tube sections, sharing the torsional and biaxial strength advantages of rectangular HSS but in a circular profile that's often preferred where appearance matters — exposed columns, canopy supports, and architectural framing — as well as more utilitarian uses like handrail posts and bollards. The circular shape distributes compressive and torsional loads evenly in every direction, making round HSS a strong, materially efficient choice wherever a round column or post is wanted rather than a square or rectangular one.

AutoCAD, MicroStation and OpenBuildings Designer CAD Outsource Services. Request a Quote Today!

Dimensions

PropertyValue
Nominal Weight (lb/ft)60.13
Outside Diameter (in)11.75
Nominal Thickness (in)0.5

Full sortable table: Dimensions table for this family

Section Properties

PropertyValue
Ix (in⁴)263
Zx (in³)59.3
Sx (in³)44.7
rx (in)3.99
Iy (in⁴)263
Zy (in³)59.3
Sy (in³)44.7
ry (in)3.99
J (in⁴)526
C (in³)89.2

Full sortable table: Section properties table for this family
